CO₂-Optimized Charging

Self-produced energy is not always enough to cover your own charging needs, and you have to fall back on mains electricity. In this case, it makes sense to start the charging process when there is as much CO₂-neutral energy as possible in the public power grid.

Even if you have a green electricity tariff that advertises 0 gCO₂/kWh, optimized charging still makes sense. Although these tariffs are CO₂-neutral in terms of the national balance sheet, you will be using the local electricity mix. If there is little renewable energy available in the power grid, the additional electricity demand must be covered by fossil fuels.

Configuring the Data Source

In order to charge in a CO₂-optimised way, evcc needs forecast data about CO₂ emissions in your region. The configuration must be done via evcc.yaml

tariffs:
  co2:
    type: template
    template: grünstromindex # example GrünstromIndex (Germany only)
    zip: 12349 # ZIP code

In this example, we’ll use data from GrünstromIndex. See tariffs for a list of all supported data sources.

Clean web charging

Open the settings dialog at the charging point.

The CO₂ forecast data is displayed in the bar chart. Each bar represents an hour. You can select your desired CO₂ limit via the selection field or by clicking on a bar.

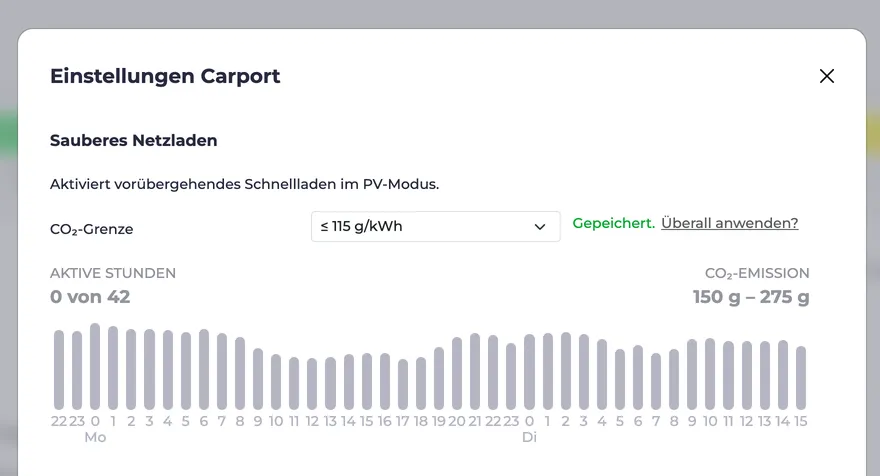

Screenshot of the Smart Grid Charging dialog with set CO₂ limit

This limit applies in the PV mode of the current charging point. By clicking on “apply everywhere”, the limit for all charging points is applied. In addition to PV surplus charging, fast charging is now activated during the hours with low CO₂ emissions (green bars). This setting is useful to ensure a fully charged battery in the winter months, whilst still relieving the power grid.

Load planning

By using charging plans, you can control CO₂-optimised charging even more precisely. All you have to do is enter your amount of energy (kWh) or your destination charge level (%) and the desired departure time. When a CO₂ data source is configured, the scheduling algorithm automatically selects the hours with the lowest CO₂ emissions.

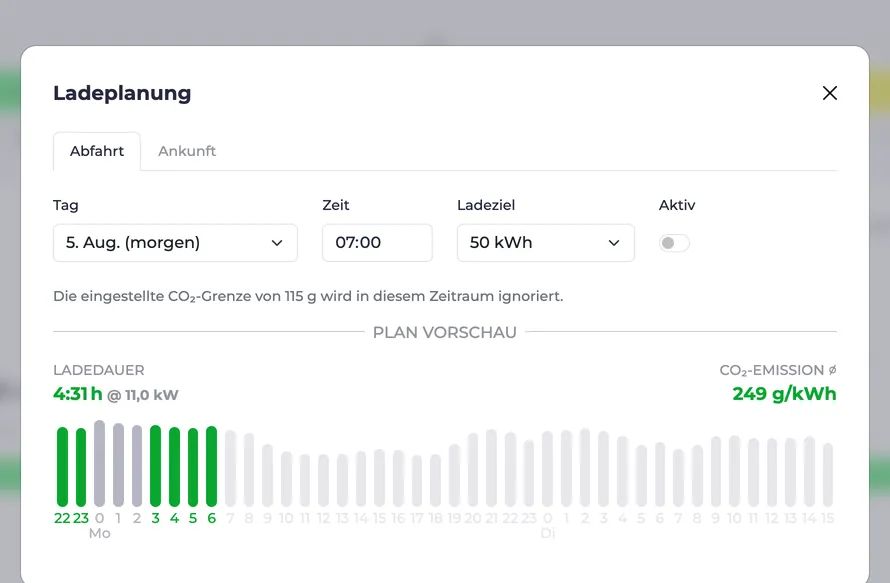

Screenshot of the charging plan dialogue with optimised CO₂ charging
